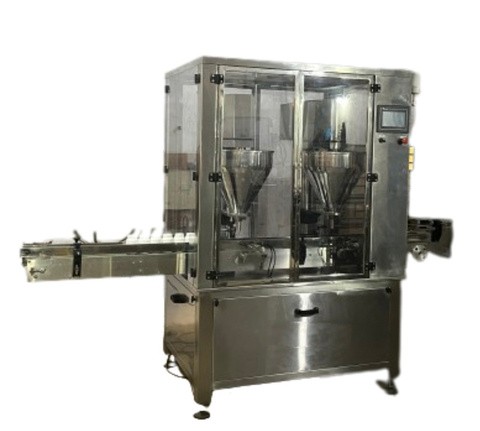

Two Head Augur Filling Machine
WFM’s Two Head Auger filling machine is precise and is built on a sturdy welded MS frame that is completely enclosed in stainless steel sheets and doors to facilitate the servicing of machine. The machine functions on the principle of Augur filling. The container is kept below the filling nozzle on a podium of the machine that leads to filling. The bottle guide goes with the center of the container, right under the filling for accurate applications. The powder hopper feeds powder to the Augur assembly where it is in a continuous process of being dosed along with the rotating Augur positioned under the container. Once filled, the container is emptied and replaced with another bottle.
Technical Specification
Utility Requirement
Salient Features
Input Specification
Ambient Requirements which are must
Technical Specification
| Model | WFMPF – 4002 | ||||
| Output / Minute * | Depends on operator , powder characteristics , bottle size | ||||
| Fill Size | Minimum | 10 Gms | |||
| Maximum | 100 Gms ** | ||||
| Direction of Movement | Left to Right | ||||
| Electric Specifications | Conveyor Motor | 0.50 HP / 415 Volts / 50 Hz | |||
| Servo motor | 750W | ||||
| Height of Conveyor | 860 ± 50 mm | ||||
Utility Requirement
| Electric Supply | 3 Phase + Neutral + Earthing | |
| Electric Load | 3 kW | |
| Air Consumption | 5 CFM @ 6 Kg | |
Salient Features
| • ± 3% Filling accuracy on single dose. |
| • Servo Based dosing system. |
| • All contact parts in SS 316. |
| • Low Noise level, Low Power Consumption |
Input Specification
| Container Neck Diameter |
Minimum 22 mm ** | |||
| Round Shape | Ø 20 mm to Ø 60 mm | |||
| Respective Height : 58 mm to 120 mm |
||||
| Container Size ** |
Flat / Square |
Length : 30mm to 70 mm | ||
| Width : 20 mm to 50 mm | ||||
| Height : 58mm to 120mm | ||||
| * Can be customized. * With the help of applicable change parts. |
||||
Ambient Requirements which are must
| Temperature of the filling room | 24 – 28 ° C depending upon the product nature | ||
| Humidity of the room | 40-45 depending upon the product nature | ||
| Dust Extraction | Of adequate suction power | ||
