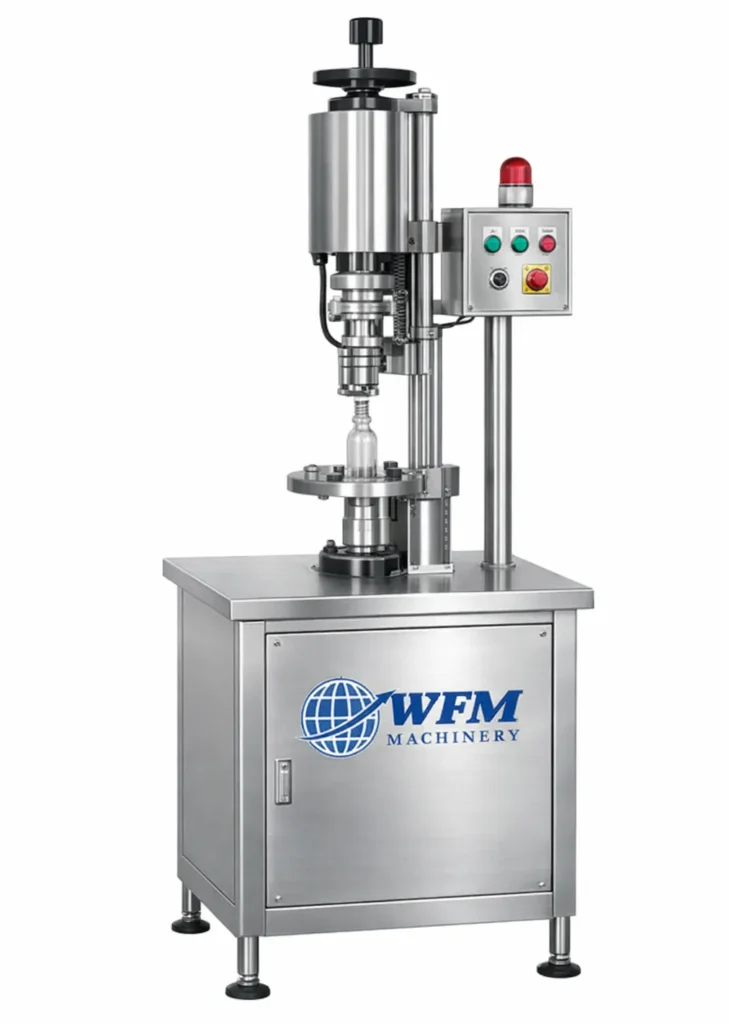

Single Head Screw Capping Machine (Semi)
WFM’s Single Head Screw Capping Machine (Semi-Automatic) is a compact and reliable solution designed for accurate and consistent screw capping operations. Engineered with a robust MS frame and stainless steel cladding, the machine ensures durability, corrosion resistance, and long operational life. It is ideal for pharmaceutical, cosmetic, chemical, food, and beverage industries.
This semi-automatic model requires the operator to manually place the bottle and cap in position. Once activated, the bottle is securely held on the platform while the adjustable capping head descends and tightens the screw cap with precise torque control. The machine ensures uniform sealing without damaging the cap or bottle.
The height adjustment mechanism allows easy handling of different bottle sizes, making it versatile for various production requirements. With simple controls and low maintenance needs, this machine is perfectly suited for small to medium-scale manufacturing units.
| Model | WFMLF – 24 | |||
| Output / Hour* | 1200 to 2400 bottles | |||
| Number of head / Syringe | 1 Nos . | |||
| Electric Specificatio ns | Main Motor | 1 HP / 415 Volts / 50 Hz | ||
| Cap Feeding Bowl | 300 Watt | |||
| Change parts required | Cap : Delivery Chute , Bowl & Jaw for Cap | |||
| Electric Supply | 3 Phase + Neutral+ Earthing |
| Electric Load | 0.75 kW |
| • The unit is made compact & versatile. |
| • S.S. elegantly matt finished body. |
| • Built in front control panel. |
| • Quick setting. |
| • Torque adjustable |
| • Motorized head movement. |
| • No change parts require for different container diameter. |
| • Low noise level, low power consumptions. |
| • Adjustable bottle height gauge for easy and quick setting. |
| • SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion. |
| Container Neck Diameter | Diameter | 18 mm to 56 mm*** | |
| Height | 15 mm to 20 mm | ||
| Round Shape | Ø 20 mm to Ø 60 mm *** | ||
| 58 mm to 120 mm *** ( Height option for other bottle height available ) | |||
| Container Size | Flat / Square | 30mm to 70 mm ( Length ) *** | |
| 20 mm to 50 mm ( Width ) *** | |||
| 58 mm X 120 mm *** ( Height option for other bottle height available ) | |||
| * Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc. * Can be customized. * With help of change parts. | |||
