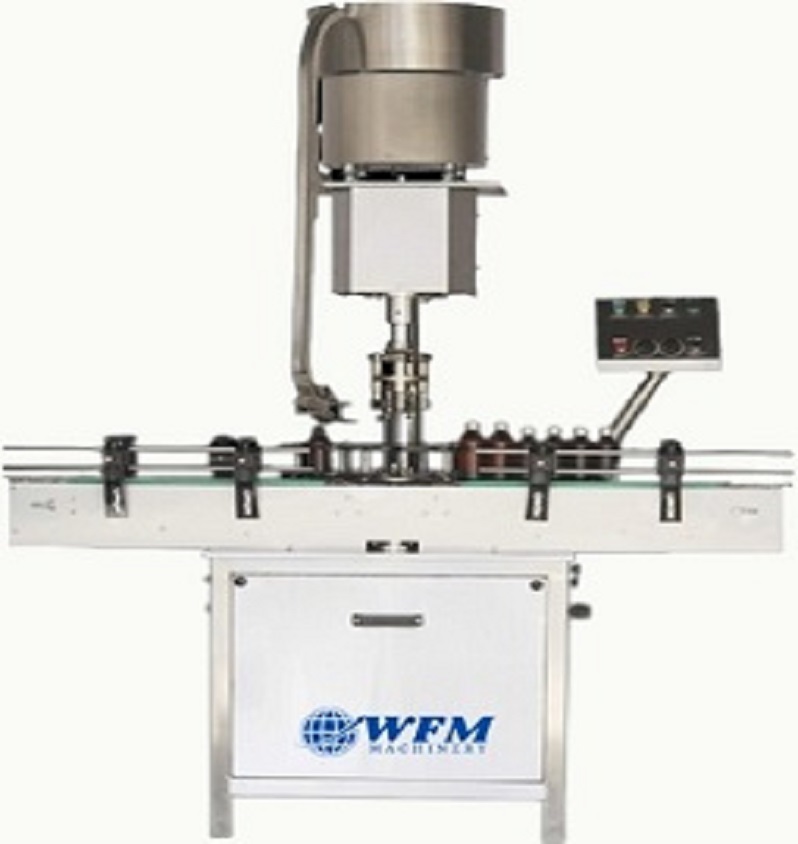

Automatic Single Head Screw Capping Machine
WFM’s Automatic Single Head Screw Capping Machine is versatile, self-supported on stainless steel leg with height adjustable adjustment system. The machine is precision built on sturdy welded MS frame completely enclosed in stainless steel sheet and doors are providing to facilitate the servicing of machine.
The feed container moving on conveyor belt are fed into star wheel, bringing the container below the Capping head in the subsequent indexing part, mean while the bottle pickup a cap from the delivery chute of cap feeding bowl, where the body and the neck of the container are positioned below the rotating head, where the Capping head is performing perfect operation of Screw capping.
Technical Specification
Utility Requirement
Salient Features
Input Specification
Technical Specification
| Model | WFMLF – 22 | |||
| Output / Hour* | 1200 to 2400 bottles | |||
| Number of head / Syringe |
1 Nos . | |||
| Electric Specificatio ns |
Main Motor |
1 HP / 415 Volts / 50 Hz | ||
| Cap Feeding Bowl |
300 Watt | |||
| Change parts required | Cap : Delivery Chute , Bowl & Jaw for Cap | |||
Utility Requirement
| Electric Supply | 3 Phase + Neutral+ Earthing |
| Electric Load | 0.75 kW |
Salient Features
| • No cap machine stop arrangement. |
| • No container No cap arrangement. |
| • SS elegantly matt finished body. |
| • Single motor synchronizes conveyor, star wheel, & platform turret. |
| • Adjustable height of conveyor belt to align with other machine of the line |
| • Sealing pressure can be varied to suit different gauges and size of caps |
| • Low noise level, low power consumptions. |
| • SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion. |
| • Synchronized A/C drives to synchronize, Conveyor, Star wheel and Platform turret & capping bowl. |
| • Adjustable bottle height gauge for easy and quick setting. |
Input Specification
| Container Neck Diameter | Diameter | 22 mm to 35 mm *** | |
| Height | 20 mm to 25 mm | ||
| Round Shape | Ø 20 mm to Ø 60 mm *** | ||
| 58 mm to 120 mm *** ( Height option for other bottle height available ) | |||
| Container Size | Flat / Square | 30mm to 70 mm ( Length ) *** | |
| 20 mm to 50 mm ( Width ) *** | |||
| 58 mm X 120 mm *** ( Height option for other bottle height available ) | |||
| * Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc. * Can be customized. * With help of change parts. | |||
