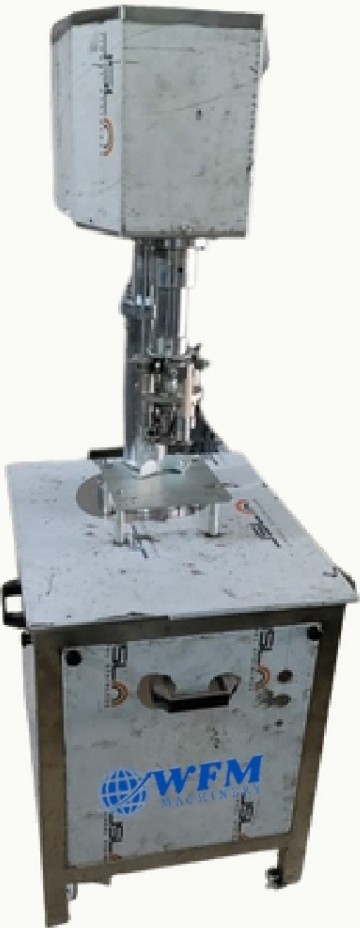

Single Head Ropp Capping Machine (Semi)
WFM’s Single Head ROPP Capping Machine (Semi-Automatic) is a compact and efficient solution designed for precise sealing of aluminum ROPP caps on bottles. Built on a sturdy MS frame with stainless steel cladding, the machine ensures durability, hygiene, and long service life — making it ideal for pharmaceutical, liquor, chemical, and beverage industries.
In this semi-automatic model, the operator manually places the bottle on the platform and positions the cap onto the bottle neck. Once activated, the bottle is held firmly under the rotating sealing head, where the threading rollers accurately form the cap around the bottle neck, ensuring a tight, tamper-evident seal.
The machine is equipped with adjustable height settings to accommodate different bottle sizes and requires minimal maintenance. Its user-friendly operation and reliable performance make it suitable for small to medium-scale production units.
Key Features:
Robust MS frame with stainless steel body
Precision sealing with adjustable sealing pressure
Suitable for various bottle heights and neck diameters
Easy operation and low maintenance
Compact design with smooth performance
| Model | WFMLF – 23 | |||
| Output / Hour* | 1200 to 2400 bottles | |||
| Number of head / Syringe | 1 Nos . | |||
| Electric Specificatio ns | Main Motor | 1 HP / 415 Volts / 50 Hz | ||
| Cap Feeding Bowl | 300 Watt | |||
| Change parts required | Cap : Delivery Chute , Bowl & Jaw for Cap | |||
| Electric Supply | 3 Phase + Neutral+ Earthing |
| Electric Load | 0.75 kW |
| • The unit is made compact & versatile. |
| • S.S. elegantly matt finished body. |
| • Built in front control panel. |
| • Quick setting. |
| • Torque adjustable |
| • Motorized head movement. |
| • No change parts require for different container diameter. |
| • Low noise level, low power consumptions. |
| • Adjustable bottle height gauge for easy and quick setting. |
| • SS cladding or hard chrome platting of all exposed parts to ensure long life and resistance against corrosion. |
| Container Neck Diameter | Diameter | ∅ 19 mm to ∅ 38 mm*** | |
| Height | 15 mm to 18.3 mm | ||
| Round Shape | Ø 20 mm to Ø 60 mm *** | ||
| 58 mm to 120 mm *** ( Height option for other bottle height available ) | |||
| Container Size | Flat / Square | 30mm to 70 mm ( Length ) *** | |
| 20 mm to 50 mm ( Width ) *** | |||
| 58 mm X 120 mm *** ( Height option for other bottle height available ) | |||
| * Depends on Container size, fill size, Neck diameter of container, and nature of liquid etc. * Can be customized. * With help of change parts. | |||
