Edible oil bottling is not the same as water or syrup packaging.
Oil residue, slippery PET bottles, lightweight containers, high-speed filling lines, and frequent SKU changes create serious feeding challenges.
If bottle feeding is unstable, the entire line suffers:
• Filler starvation
• Bottle tipping
• Infeed jamming
• Increased rejection
• Higher manpower dependency
• Unpredictable output

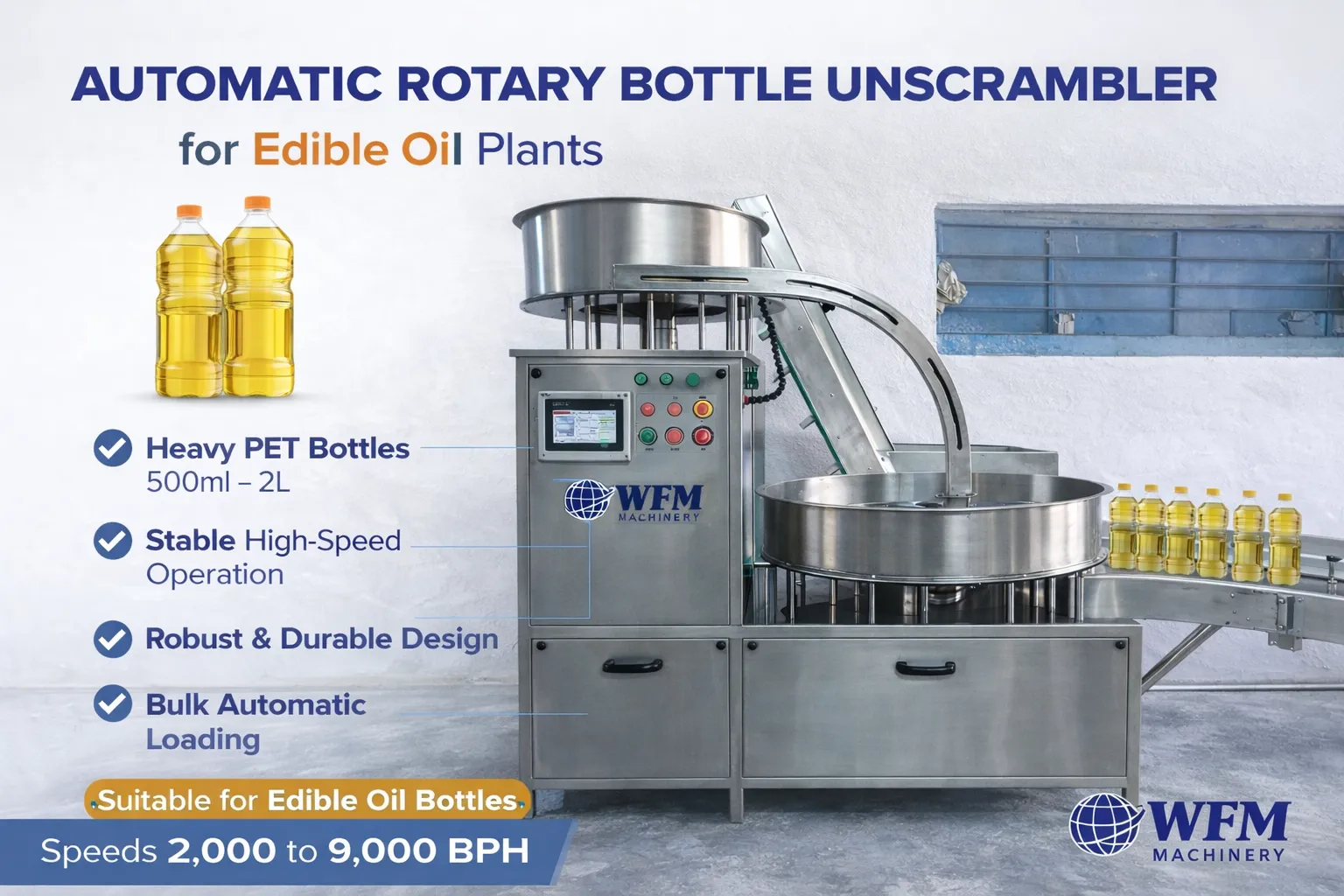

WFM Machinery’s Automatic Rotary Bottle Unscrambler is engineered specifically for edible oil plants to deliver stable, hygienic, high-speed bottle feeding with long-term reliability.
When feeding is stable, everything downstream improves.
Why Edible Oil Plants Need a Specialized Unscrambler
Edible oil environments introduce conditions that generic bottle feeders cannot handle efficiently:
• Slippery bottle surfaces
• Oil film residue
• Lightweight PET bottles
• High production targets (2000–6000+ BPH)
• Multi-size pack operations (500ml, 1L, 2L, 5L)
A properly engineered rotary system maintains stability even in these demanding conditions.
Why Rotary Design Is Ideal for Edible Oil
| Rotary Unscrambler | Linear Unscrambler |
|---|---|
| Compact footprint | Larger footprint |
| Stable at high speed | Better for low-speed lines |
| Better multi-SKU handling | Limited flexibility |
| Strong control in oily conditions | Moderate control |
For edible oil plants operating above 1500 BPH, rotary systems provide superior stability and control.
Key Benefits of Automatic Rotary Bottle Unscrambler
for Edible Oil Manufacturers
| Feature | Benefit for Edible Oil Plants |
|---|---|
| Stable High-Speed Operation | Engineered for 500 to 6000+ BPH with precision starwheel orientation and balanced rotary motion to ensure smooth bottle flow. |
| Reduced Jamming | Anti-slip feeding system and controlled discharge minimize bottle sliding and tipping in oily conditions. |
| Improved Filler Efficiency | Continuous bottle supply ensures filling machines operate at designed capacity without starvation. |
| Reduced Labor Dependency | Minimizes manual intervention, reduces operator fatigue, and lowers feeding-related errors. |
| Faster SKU Changeover | Quick-adjust guide rails and programmable PLC recipes support efficient multi-pack operations. |
| Hygienic Construction | SS304 standard construction with optional SS316 for enhanced corrosion resistance and compliance requirements. |
Technical Specifications Overview
| Parameter | Specification |
|---|---|
| Capacity Range | 500 – 6000+ BPH |
| Bottle Material | PET / HDPE |
| Bottle Shapes | Round, Square, Oval |
| Bottle Height | 50 – 320 mm |
| Construction | SS304 / SS316 |
| Control System | PLC + HMI |
| Utilities | 230/415V, 4–6 Bar Air |
| Changeover Time | 10–20 Minutes (Typical) |
Custom engineering is available for specific bottle designs and plant layouts.
Real Production Impact Example
Mid-size edible oil plant
Production: 2500 BPH
Manual feeding with 3 operators
Before automation:
• 2–3% downtime
• Frequent infeed corrections
• Inconsistent bottle spacing
After installing WFM Rotary Unscrambler:
• Downtime reduced below 1%
• Stable continuous feeding
• Reduced manpower dependency
• Higher shift productivity
Investment recovery is typically achieved within 6–10 months depending on production volume and margin.
How It Improves Overall Line Performance
Stable bottle feeding leads to:
• Higher filler uptime
• Better capping accuracy
• Improved labeling alignment
• Reduced bottle damage
• Predictable production scheduling
Feeding stability is the foundation of bottling efficiency.
Frequently Asked Questions
Can it handle slippery oil-coated bottles?
Yes. The rotary system is engineered for edible oil environments where bottles may carry light oil residue. The precision starwheel orientation mechanism and anti-slip conveying surfaces ensure stable handling without sliding or tipping, even at high speeds.
Is it suitable for multiple bottle sizes?
Yes. Adjustable guide rails, interchangeable change parts, and programmable PLC recipes allow fast and repeatable changeovers for multiple SKUs.
What capacity should I choose?
It is recommended to select a machine with 20–30% higher capacity than your current filler speed. This ensures smooth synchronization and allows future expansion.
Does it integrate with existing filling lines?
Yes. The system is designed for seamless integration with filling, capping, and labeling machines. Conveyor height, output pitch, and control synchronization are configured during installation.
What maintenance is required?
Routine cleaning, lubrication, inspection of belts and bearings, and preventive maintenance checks are required. A maintenance schedule is provided with the machine.
What is the expected machine lifespan?
With proper maintenance, the machine operates reliably for 10–15 years or more in industrial environments.
How much floor space is required?
Floor space depends on capacity and hopper size. Our engineering team reviews your layout and recommends an optimized footprint before finalization.
What is the power consumption?
Power requirement depends on capacity, typically between 1.5 kW to 5 kW. Detailed electrical specifications are shared during quotation.
How long does delivery take?
Standard delivery timelines range between 3 to 8 weeks depending on configuration and customization.
Is installation and commissioning included?
Yes. Installation, commissioning, and operator training are provided to ensure smooth startup.
Are spare parts easily available?
Yes. Standard spare parts are readily available, and a recommended spare kit is provided to minimize downtime.
What warranty is provided?
Warranty terms are provided at the time of quotation and cover manufacturing defects under standard operating conditions.
Can it handle future bottle designs?
Yes. The system can be upgraded with additional change parts to support new bottle sizes within the defined range.
Is it suitable for 24/7 production?
Yes. The machine is built for continuous industrial operation with proper preventive maintenance.
How do I know if this is the right model for my plant?
Share your bottle dimensions, required BPH, number of SKUs, and plant layout. Our technical team will recommend the most suitable configuration.
When Should You Upgrade?
Consider upgrading if:
• Production exceeds 1000 BPH
• Manual feeding causes filler delays
• Bottles frequently jam
• Labor cost is increasing
• You are expanding capacity
• You require consistent high-speed output
Automation at the feeding stage protects your entire bottling investment.
Why WFM Machinery
• Heavy-duty industrial fabrication
• Balanced low-vibration rotary design
• Precision starwheel machining
• Engineered specifically for edible oil applications
• Nationwide technical support
• Custom bottle trials before dispatch
We engineer plant-specific solutions designed for long-term performance.
Request a Customized Recommendation
Every edible oil plant is different.
To receive accurate configuration and pricing, share:
• Bottle height and diameter
• Required BPH
• Number of SKUs
• Material requirement (SS304 / SS316)
• Available floor space
You may:
✔ Fill the enquiry form
✔ Call our technical team
✔ Message us on WhatsApp
Our engineering team will recommend the most suitable Automatic Rotary Bottle Unscrambler configuration tailored to your edible oil production line.
