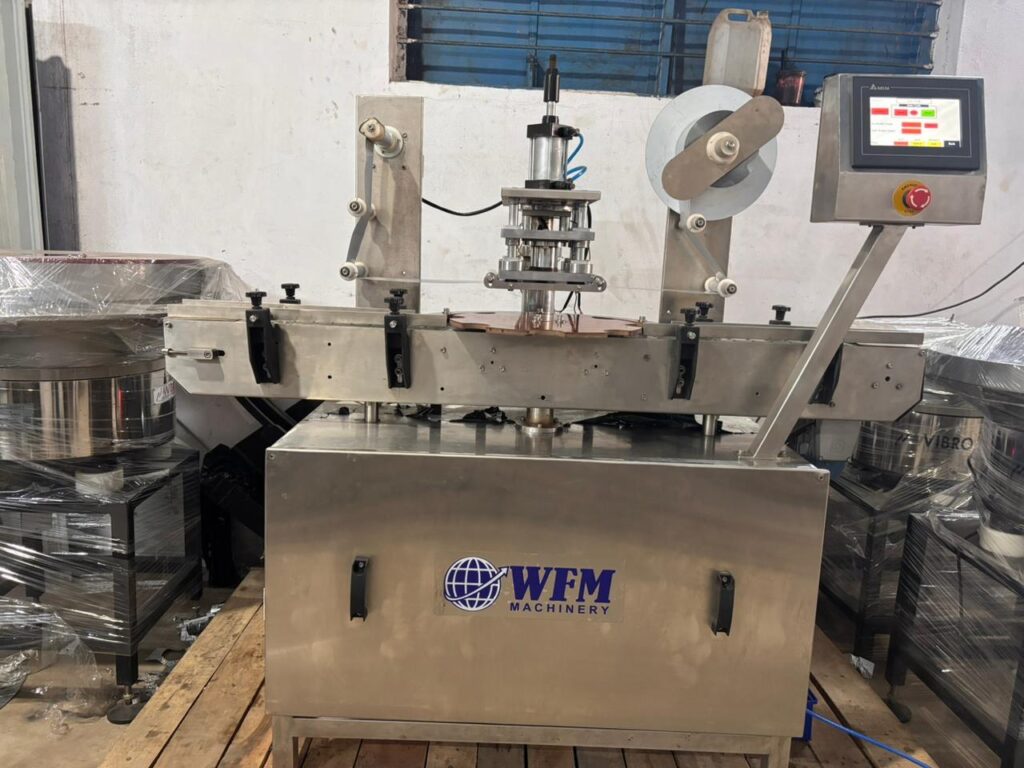

Automatic Conduction Sealing Machine
WFM’s WFMCSS-4002 Automatic Conduction Sealing Machine is designed for sealing different sizes of bottles with aluminum foil liners using direct heat conduction technology. The machine is suitable for continuous operation in pharmaceutical, food, cosmetic, and chemical industries.
We are not only Automatic Conduction Sealing Machine manufacturer but we make them using high-grade stainless steel with a matte finish, ensuring durability, corrosion resistance, and compliance with hygienic packaging standards. It is fully automatic and equipped with a PLC-based control panel that allows precise control of sealing temperature, pressure, and dwell time for consistent and reliable sealing results.
The system requires minimal change parts, resulting in reduced downtime during bottle size changeover and routine maintenance. It supports both continuous and batch operation, offering flexibility to suit different production requirements. The machine is designed and built in accordance with current Good Manufacturing Practices (cGMP).
Various optional attachments and accessories can be provided to improve sealing efficiency, enhance line integration, and meet specific application needs.
| Parameter | Specification |
|---|---|
| Model | WFMAIS-4002 |
| Output / Hour* | 3,000 – 9,000 Nos. |
| Direction of Movement | Left to Right |
| Power Supply | 415 Volts / 50 Hz |
| Sealing Head Type | Air-Cooled Induction Head |
| Conveyor Motor | 0.50 HP / 415 Volts / 50 Hz |
| Induction Generator Power | 1.5 kW |
| Height of Conveyor | 860 ± 50 mm |
| Container Diameter Range | 20 mm – 120 mm |
| Foil Liner Type | Aluminium Foil |
| Control Panel | PLC Based |
| Construction | SS 304, Matte Finish |
Fully automatic operation for high productivity
Uniform and consistent sealing quality
Tamper-evident and leak-proof sealing
PLC-based control system for precise parameter control
Adjustable sealing temperature, pressure, and dwell time
Minimal change parts for quick bottle size changeover
Reduced downtime and low maintenance requirements
Compact design for easy line integration
Stable performance during continuous production
Suitable for round and various container profiles
The machine is widely used for sealing containers in:
Pharmaceutical bottles (syrups, tablets, capsules)
Food products (sauces, oils, powders)
Cosmetic containers (creams, lotions, gels)
Nutraceutical packaging
Chemical and agrochemical containers
- Complete machine structure made from SS 304
Matte finish for enhanced corrosion resistance
Designed in accordance with current Good Manufacturing Practices (cGMP)
Hygienic design suitable for cleanroom environments
Robust conveyor structure for long operational life
The machine is equipped with a PLC-based control panel that allows:
Accurate sealing temperature control
Pressure adjustment settings
Dwell time customization
Smooth operation and monitoring
Easy parameter modification for different container types
Various optional attachments and accessories can be provided to improve sealing efficiency and enhance production line integration:
Bottle rejection system
Cap inspection system
Digital temperature monitoring
Customized conveyor length
Line synchronization system
Stainless steel enclosure
Special container handling guides
Customization options are available based on application requirements.
- On-site installation and commissioning
Operator training support
One-year warranty against manufacturing defects
Annual Maintenance Contract (AMC) available
Prompt after-sales service and spare parts support
