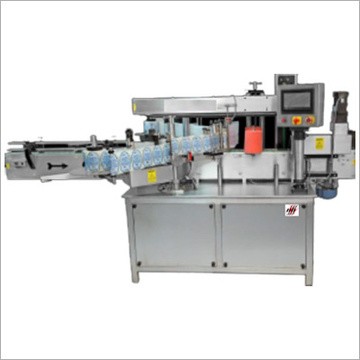

Auto Sticker Two Side Labeling Machine (For Flat Bottle)
WFM’s WFMLF-3003 is an automatic vertical sticker labeling machine used for two side labeling on flat surface of flat containers. This machine is manufactured with stainless steel and is extremely durable and reliable for accurate labeling on flat surfaces. The labeling machine has a PLC board that facilitates higher production speed.
Our machine is designed to be compliant with the best international standards. This machine ensures neat and perfect fixing of label on the container and comes with various other optional attachments that can be used to increase the functionality of the labeling machine.
Technical Specification
Utility Requirement
Salient Features
Input Specification
Technical Specification
| Model | WFMLF – 3003 | |||
| Output / Hour* | 2400 to 3600 containers | |||
| Direction of Movement | Left to Right | |||
| Electric Specifications |
Conveyor Motor |
0.50 HP / 415 Volts / 50 Hz | ||
| Top Guide Belt Motor |
90 Watt , Gear Motor | |||
| Sticker Roll Stepper / Servo Motors |
6V DC / 40 kg x 2 / 750W Servo | |||
| Delay Device Motors |
60 Watt , Gear Motor x 2 | |||
| Height of Conveyor | 860 ± 50 mm | |||
Utility Requirement
| Electric Supply | 1 Phase + Neutral + Earthing | |||
| Electric Load | 2.0 KW | |||
| Air Pressure : Minimum | 2 CFM @ 6 kg for printer or rejection device if such installed |
|||
Salient Features
| •Rigid MS structure with elegantly matt finished SS cladding |
| • Container hold from top for perfect labeling. |
| • Accurate labeling on parallel flat surfaces. |
| • PLC based operation having security package and counter |
| • Product data storage facility.Product data storage facility. |
| • Requires no bottle /label change parts |
| • Very less down time for change over. |
| • Very compact design of applicators made of aluminum |
| • Various batch code printers can be installed (optional). |
| • Bar code detection, missing label detection & misprinting detection can be installed with rejection (optional). |
| • GMP design with complete SS structure. |
Input Specification
| Label Specification |
Length ** | 40 mm to 100 mm | |
| Width ** | 20 mm to 70 mm | ||
| Roll Diameter |
Max . 300 mm X ID 75 mm | ||
| Space between two label |
3 mm in anti clock wise | ||
| Container Size |
Round Shape |
Diameter : Ø 20 mm to Ø 60 mm *** |
|
| Respective height : 40 mm to 120 mm *** |
|||
| * Depending on the shape & size of container & label size. * Can be customized. * We can supply as per customer requirements. |
|||
